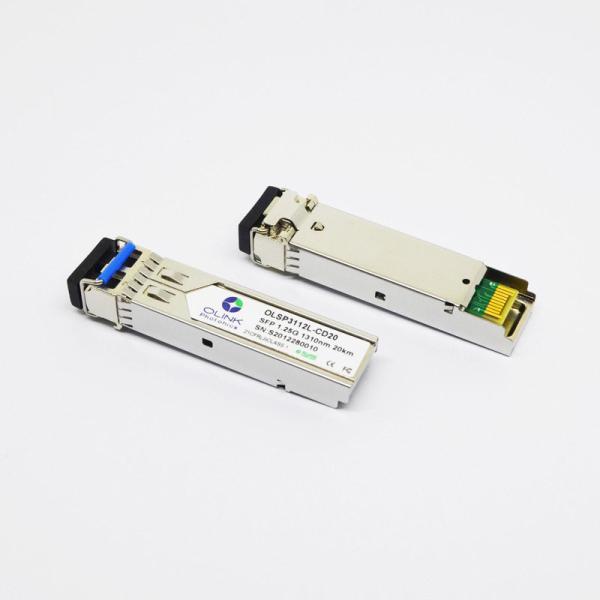

Extreme Supported SFP Optical Transceivers 1GE Gigabit Ethernet 1310nm LC 20km
Extreme Supported SFP Module 1.25G 1GE Gigabit Ethernet 1310nm LC 20km
Product Features
● Supports 1.25Gbps/1.0625Gbps bit rates
● Duplex LC connector
● Hot pluggable SFP footprint
● 1310nm FP laser transmitter and PIN photo-detector
● Applicable for 20Km SMF connection
● Low power consumption, < 0.8W
● Digital Diagnostic Monitor Interface
● Compliant with SFP MSA and SFF-8472
● Very low EMI and excellent ESD protection
● Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications
● Gigabit Ethernet
● Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems
Product Descriptions
Olinkphotonics’ OLSP3112L-C(I)D20,SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | 1290 | 1310 | 1330 | nm | |
| Ave. output power (Enabled) | PAVE | -8 | | -4 | dBm | 1 |
| Extinction Ratio | ER | 9 | | | dB | 1 |
| RMS spectral width | Δλ | | | 0.65 | nm | |
| Rise/Fall time (20%~80%) | Tr/Tf | | | 0.26 | ns | 2 |
| Dispersion penalty | TDP | | | 3.9 | dB | |
| Output Optical Eye | Compliant with IEEE802.3 z (class 1 aser safety) |
| Receiver |
| Operating Wavelength | λ | | 1310 | | nm | |
| Receiver Sensitivity | PSEN1 | | | -22 | dBm | 3 |
| Overload | PAVE | -3 | | | dBm | 3 |
| LOS Assert | Pa | -35 | | | dBm | |
| LOS De-assert | Pd | | | -24 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
All our products support 3 years quality warranty.
