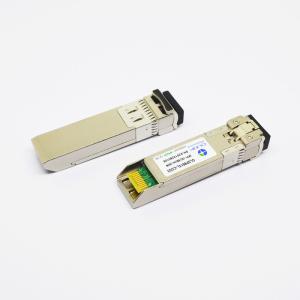

Multi Mode 10G SFP+ SR Transceiver NetApp Compatible FDA Approved
NetApp X6589-R6 Compatible 10Gb/s 850nm Multi-mode SFP+ Transceiver
The NetApp X6589-R6 Compatible OLSP851XL-C(I)DS3 is a 10G SR multi-mode SFP+ transceiver using 850nm wavelength and reaching up to 300m distance on 50/125um fiber. The module can be used for 10G Ethernet, SONET or SDH networks.
Product Features
• Functionally identical to NetApp X6589-R6 10GBase-SR SFP+ transceiver
• Electrical interface compliant to SFF-8431
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR
• 850nm VCSEL transmitter, PIN photo-detector
• Distance up to 300 meters on 10G OM3 fiber
• ROHS compliant and lead-free
Electrical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Differential data input swing | VINPP | 180 | | 700 | mVpp | 1 |
| Transmit Disable Voltage | VD | VCC-0.8 | | Vcc | V | |
| Transmit Enable Voltage | VEN | Vee | | Vee+0.8 |
| Input differential impedance | Rin | | 100 | | Ω | |
| Receiver |
| Differential data output swing | Vout,pp | 300 | | 850 | mVpp | 2 |
| Output rise time and fall time | Tr, Tf | 28 | | | Ps | 3 |
| LOS asserted | VLOS_F | 2 | | Vcc_HOST | V | 4 |
| LOS de-asserted | VLOS_N | Vee | | Vee+0.8 | V | 4 |
Note:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Optical Characteristics (TOP(C) =0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | 840 | 850 | 860 | nm | |
| Ave. output power (Enabled) | PAVE | -6 | | -1 | dBm | 1 |
| Extinction Ratio | ER | 4 | 4.5 | | dB | |
| RMS spectral width | Δλ | | | 1 | nm | |
| Rise/Fall time (20%~80%) | Tr/Tf | | | 50 | ps | 2 |
| Dispersion penalty | TDP | | | 3.9 | dB | |
| Output Optical Eye | Compliant with IEEE 0802.3ae |
| Receiver |
| Operating Wavelength | | 840 | 850 | 860 | nm | |
| Receiver Sensitivity(ER=4.5) | PSEN1 | | | -11.1 | dBm | 3 |
| Overload | PAVE | | | 0.5 | dBm | |
| LOS Assert | Pa | -30 | | | dBm | |
| LOS De-assert | Pd | | | -12 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
Notes:
1. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
2.20%~80%
3.Under the ER worst case=4.5@ 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12
Olinkcom's OLSP851XL-C(I)DS3 is a high performance and cost-effective 10GBASE-SR SFP+ transceiver module for 10 Gigabit Ethernet links up to 300m over OM3 multimode fiber. The transceiver features a highly reliable 850nm VCSEL transmitter and PIN photo-detector into duplex LC optical connector. It complies with SFP+ MSA specifications (SFF-8431, SFF-8432), 10 Gigabit Ethernet specifications (10GBASE-SR/SW per IEEE 802.3ae ), and 10G Fibre Channel (1200-MX-SN-I).
Additionally, the 10GBASE-SR SFP+ transceiver has been integrated with an enhanced digital diagnostic monitoring interface (DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
